Automatic Painting Production Line

Automatic Powder Coating Production Line for Industrial Surface Finishing

This advanced automated Powder Coating System represents a cutting-edge solution for high-efficiency, consistent, and environmentally responsible surface treatment across multiple manufacturing sectors. Designed for seamless integration into modern production environments, it transforms traditional manual painting processes into precision-engineered workflows that maximize throughput while minimizing waste and emissions. Ideal for industries such as automotive assembly, appliance manufacturing, furniture fabrication, and electronics housing production, this line ensures superior finish quality through intelligent automation, real-time monitoring, and adaptive control mechanisms.

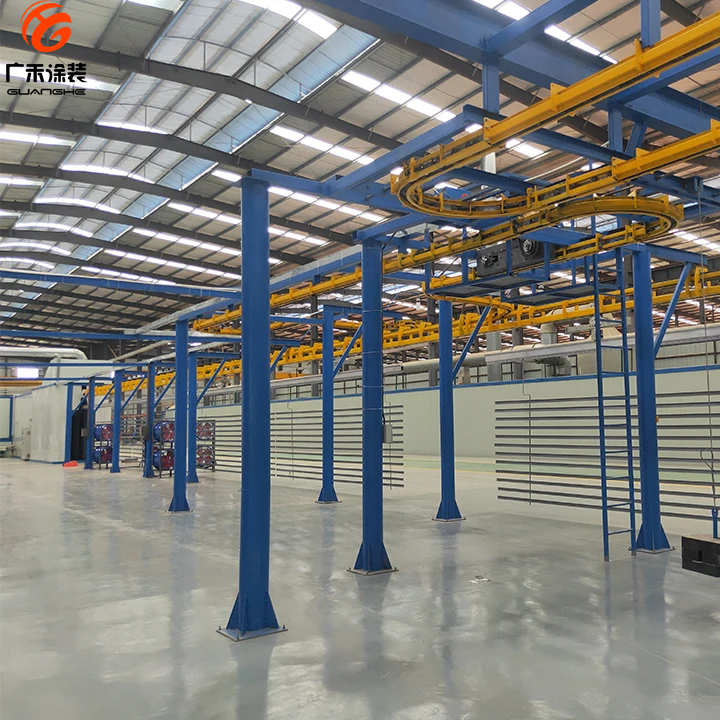

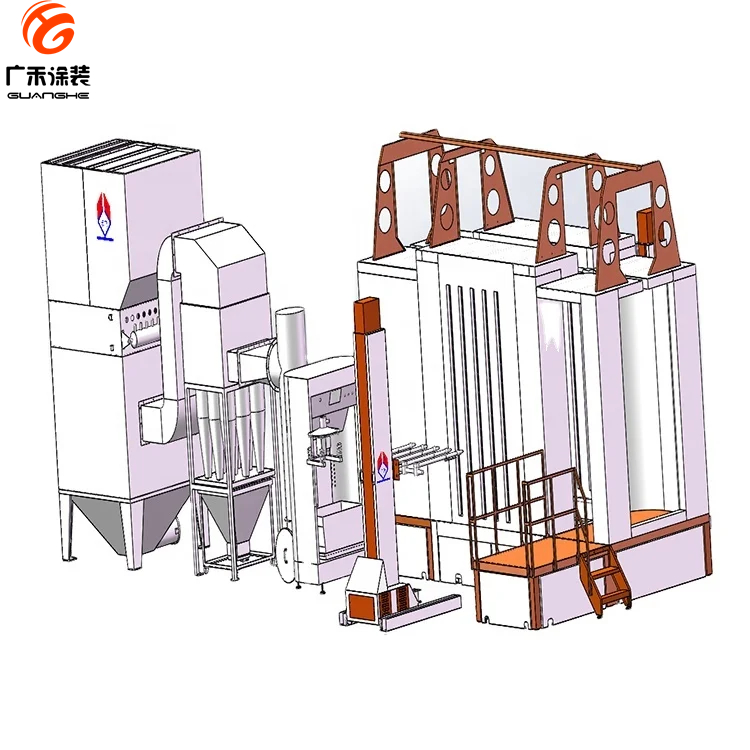

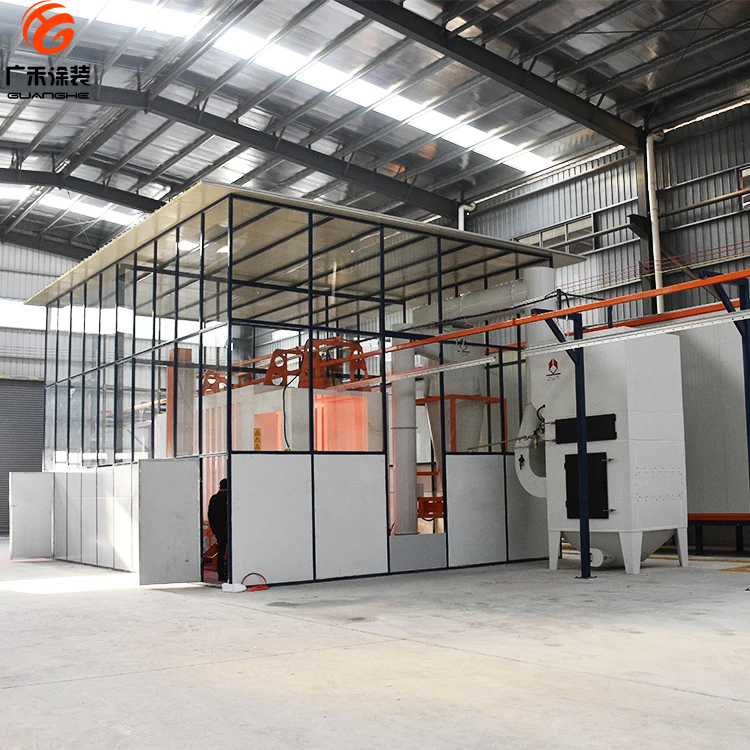

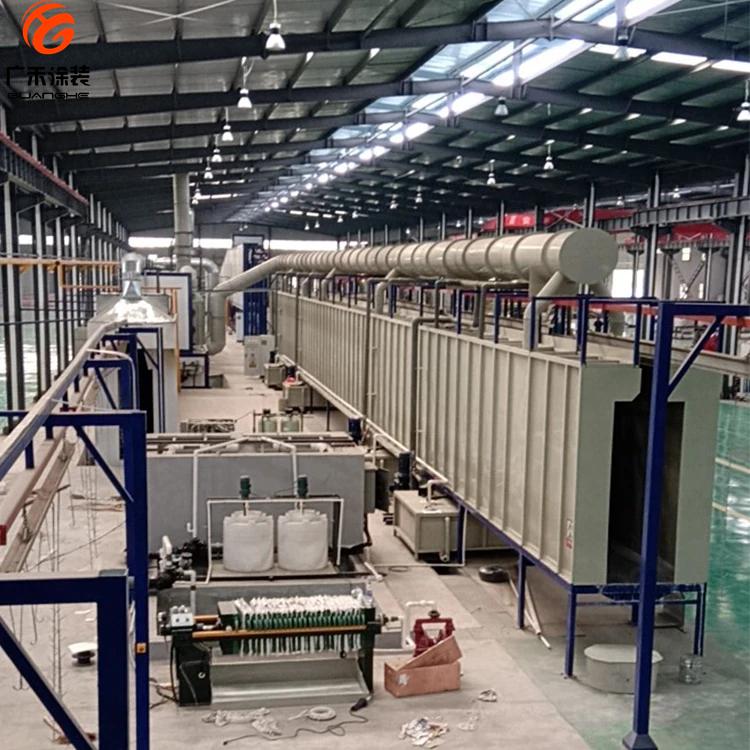

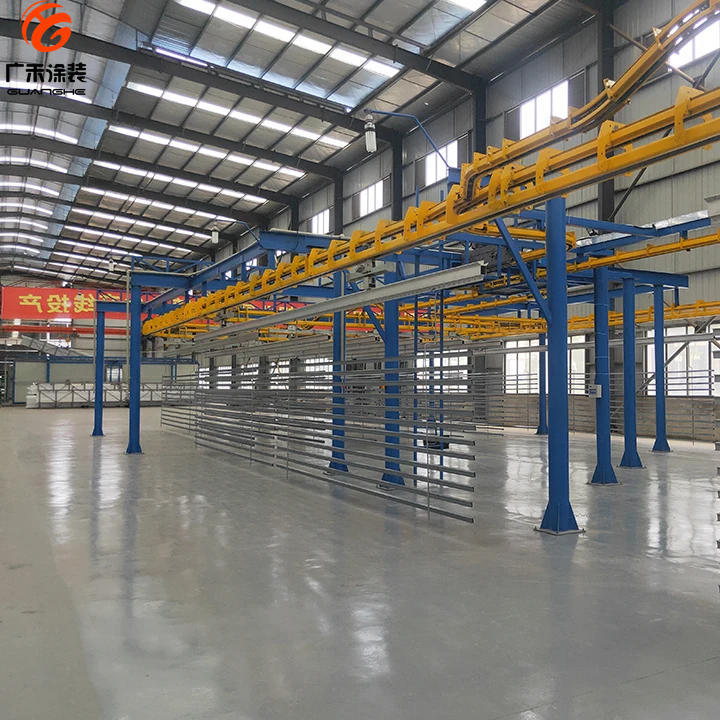

The core components include a robotic spraying arm equipped with either a rotary cup or electrostatic spray gun, an integrated conveyor system for continuous product flow, a dedicated pretreatment chamber (spray tunnel, dip tank, or immersion bath), a curing oven utilizing electric, gas, or propane heating methods, and a centralized control unit that manages all operational parameters. Each stage—from loading and pre-cleaning to application, drying, and unloading—is executed without human intervention, significantly reducing labor costs and variability in finish uniformity. The inclusion of sensors allows for dynamic adjustment of coating thickness, ensuring compliance with strict industrial standards while optimizing material usage.

Key features include customizable configuration based on part dimensions and production volume, flexible switching between fully automatic and semi-automatic modes, and modular design that supports scalability from small batch runs to mass production lines. The system accommodates various substrates including steel, aluminum, and other metals, making it suitable for both ferrous and non-ferrous applications. With options for manual or automated conveyance systems and programmable speed settings tailored to output targets, users can fine-tune the process to match their specific workflow requirements. Additionally, safety protocols are embedded throughout—featuring emergency stops, protective grilles, explosion-proof zones, and energy-lock procedures during maintenance—to ensure safe operation in diverse industrial settings.

Installation requires a level, well-ventilated workspace free from dust accumulation. Proper alignment of each station—including loading, pretreatment, spraying, curing, and unloading—is essential for optimal performance. Electrical wiring must follow international safety codes, and thorough commissioning—including no-load testing, trajectory calibration, and temperature verification—is mandatory before full-scale operation. Regular maintenance tasks involve daily cleaning of overspray residue, periodic inspection of nozzle integrity, lubrication of moving parts like guide rails and chains, replacement of worn consumables such as seals and filter media, and adherence to environmental regulations when disposing of paint sludge or solvents. Long-term storage necessitates complete shutdown, anti-corrosion treatment, and dust protection to preserve system readiness upon restart.

This powder coating production line is particularly effective in scenarios demanding high consistency, rapid turnaround, and minimal environmental impact. Whether used in a medium-sized workshop producing custom metal casings or in a large-scale facility handling thousands of units per month, its adaptability makes it a future-proof investment. It excels in applications where surface aesthetics, durability, and regulatory compliance are critical—such as automotive trim pieces, household appliances, architectural hardware, and electronic enclosures.

Users consistently report improved productivity metrics, reduced rework rates, and enhanced worker safety due to minimized exposure to volatile organic compounds (VOCs). Many appreciate the ease of integrating new models into existing lines and the ability to adjust spray patterns dynamically for complex geometries. While initial setup involves technical planning and training, the long-term return on investment through lower operational costs and higher yield justifies the expenditure for forward-thinking manufacturers worldwide.

Common inquiries often revolve around customization flexibility, compatibility with different powder types (epoxy, polyester, hybrid), and integration with existing factory automation systems like PLCs or SCADA networks. Some users also ask about energy efficiency comparisons between electric and gas-powered curing ovens, while others seek guidance on maintaining sensor accuracy over time. Despite these considerations, most customers find the system intuitive once properly configured and supported by experienced technical teams.
