Large Scale Powder Coating Paint Line

Large-Scale Automated Powder Coating Line for Industrial Surface Finishing

This advanced Powder Coating System is engineered for high-efficiency, consistent, and eco-friendly surface treatment of large metal components across industries such as automotive manufacturing, construction, home appliances, and heavy machinery. By integrating an intelligent control platform with modular subsystems—automatic pretreatment, electrostatic spray application, and thermal curing—the entire process from preparation to final finish operates seamlessly without manual intervention. Designed for batch processing of complex or oversized parts, this solution ensures superior adhesion, minimal material waste, and uniform coverage while reducing labor costs and environmental impact.

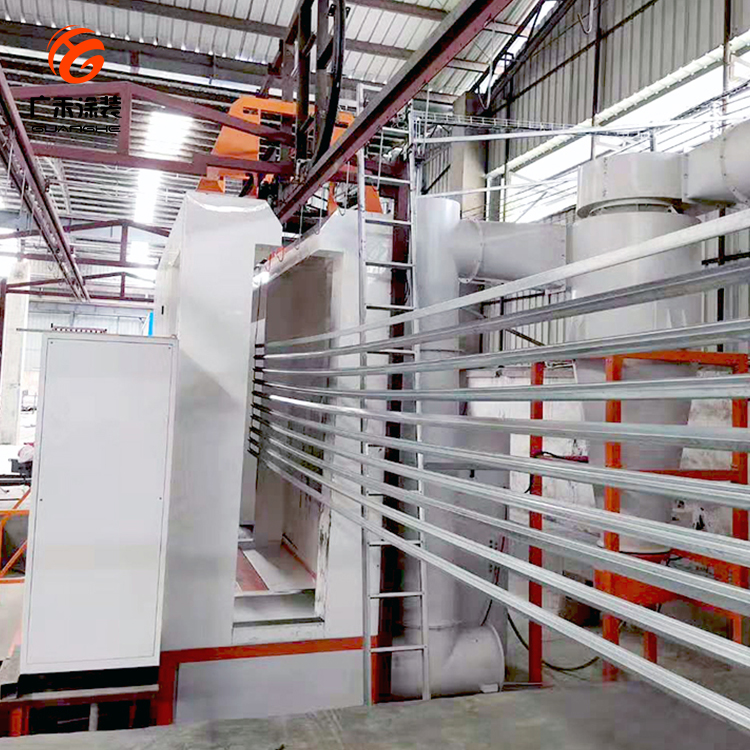

Key features include a fully automated conveyor system that synchronizes movement through each stage, robotic arms equipped with precision nozzles for 360° spraying capability, and a closed-loop powder recovery mechanism that captures up to 95% of overspray for reuse. The system supports multiple heating methods—including electric, natural gas, and LPG—to accommodate diverse facility infrastructures and energy policies. With customizable configurations based on workpiece dimensions, production volume (up to several tons per month), and operational shifts, it offers flexibility for both small-scale workshops and large industrial facilities.

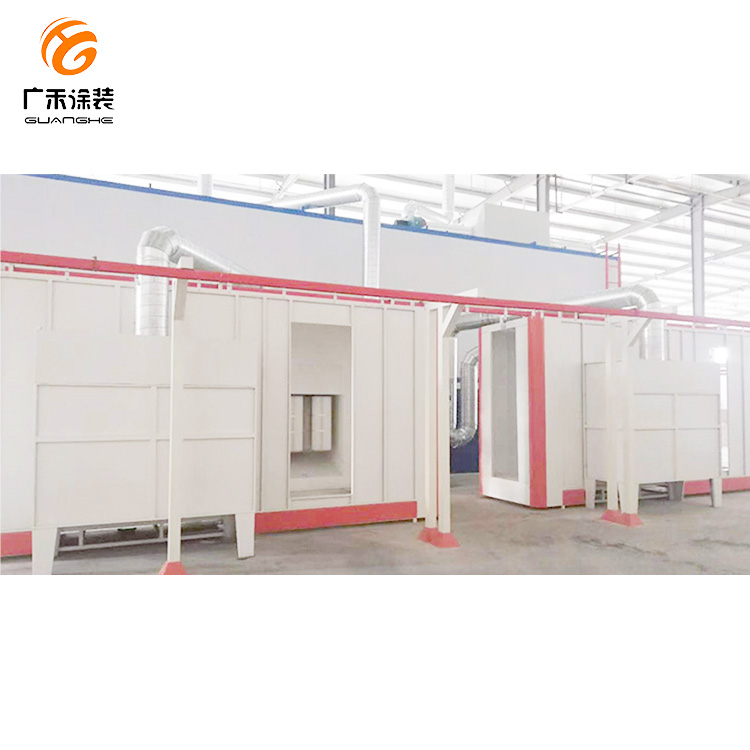

The design emphasizes safety, efficiency, and maintainability. Each component—from the stainless steel or corrosion-resistant plastic pretreatment tanks to the sealed spray booth with dust filtration—is built to meet international standards for explosion-proof environments and occupational health. Installation requires careful site planning including load-bearing capacity, ventilation, and dedicated maintenance access. Post-installation calibration of voltage, air pressure, powder flow rates, and temperature profiles ensures optimal performance. Regular upkeep includes cleaning internal surfaces of the curing oven, inspecting electrode wear, replacing filters in the recovery unit, lubricating moving parts, and verifying electrical integrity—all critical to minimizing downtime and maximizing lifespan.

Industries benefit from this line’s ability to handle intricate geometries like frames, panels, and structural components where traditional painting methods fall short. It’s particularly effective for coating automotive body panels, HVAC units, industrial shelving, and architectural metalwork. Its adaptability makes it ideal for manufacturers seeking compliance with global emissions regulations while enhancing product durability and aesthetic consistency.

Users report significant improvements in throughput, reduced rework due to inconsistent finishes, and lower overall operating costs compared to manual or semi-automated alternatives. Many appreciate the intuitive interface that simplifies parameter adjustments and the robust engineering that minimizes unexpected breakdowns. Operators often highlight the ease of training staff on safety protocols and routine checks, which further strengthens workplace compliance and productivity.

Common questions involve setup time, compatibility with different powder types, integration with existing production lines, and how to optimize energy consumption during curing cycles. Most installations are completed within 2–4 weeks depending on site readiness, and the system supports a wide range of thermosetting and thermoplastic powders. For users concerned about sustainability, the system’s recyclable powder recovery feature significantly reduces waste generation and aligns with green manufacturing goals.

Product Categories : Automatic Powder Coating Line
