Spray painting line for hardwares and metals

High-Efficiency Electrostatic Spray Painting Line for Metal Surfaces – Eco-Friendly, Precision Coating System

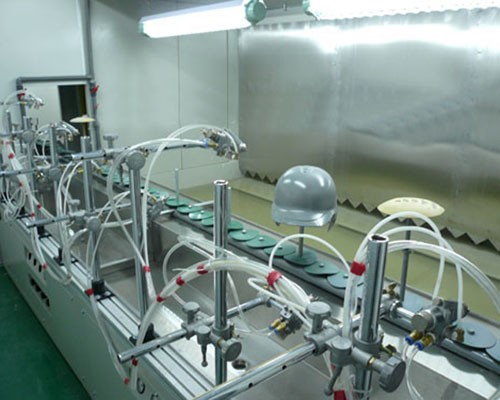

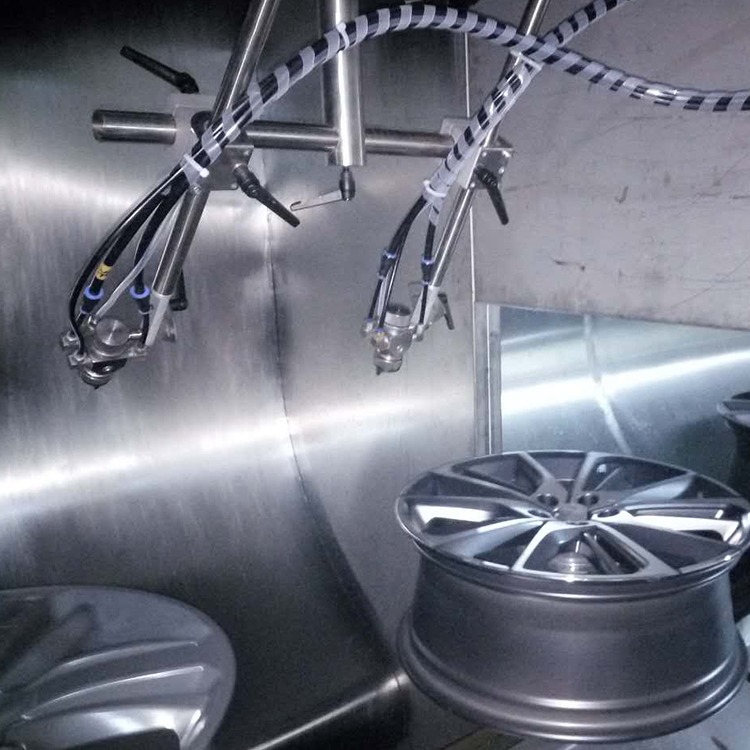

This advanced electrostatic Spray Painting line is engineered for industrial-scale finishing of hardware and metal components, delivering consistent, durable coatings with minimal waste and reduced environmental impact. Designed for integration into automated production environments, it combines the speed of an Automatic Powder Coating system with precise robotic or fixed-gun application technology to ensure uniform coverage across complex geometries—ideal for sectors like automotive manufacturing, construction equipment, and furniture production.

Key features include a robust PLC-controlled interface (Siemens brand) with touchscreen operation, ensuring intuitive control over every stage from surface preparation through curing. The system supports multiple heating methods—including diesel, gas, LPG, and electric—to suit diverse facility infrastructures. With a high-volume air flow of 25,000 m³/h in the paint booth, it maintains optimal airflow dynamics that reduce overspray while enhancing transfer efficiency. Equipped with UV lamps offering over 1,000 hours of guaranteed operational life, this line enables rapid curing without compromising finish quality.

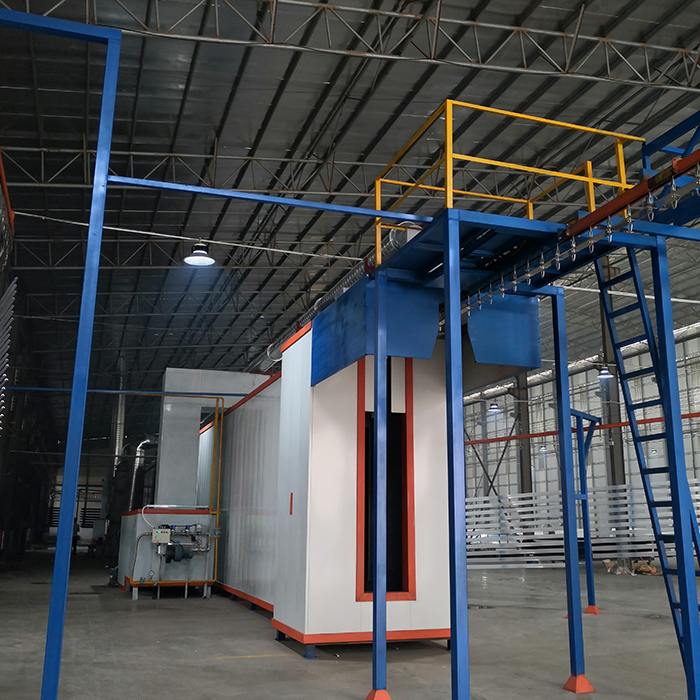

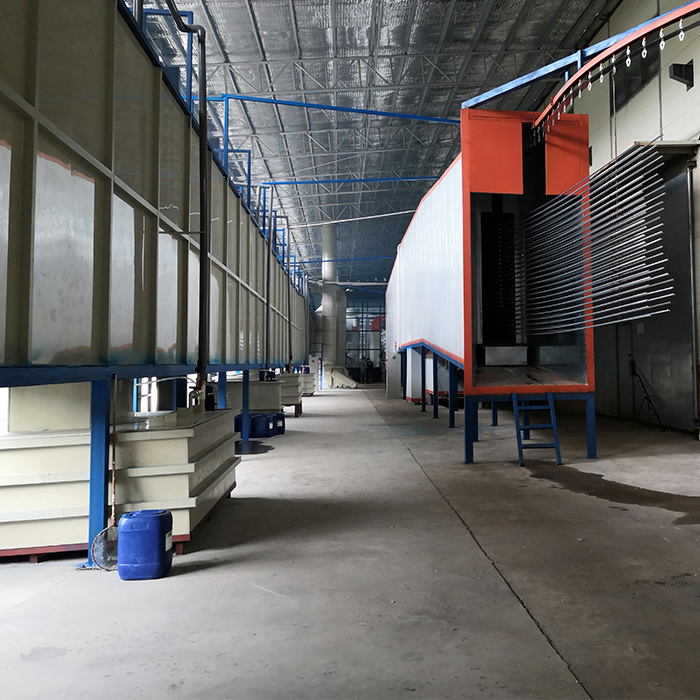

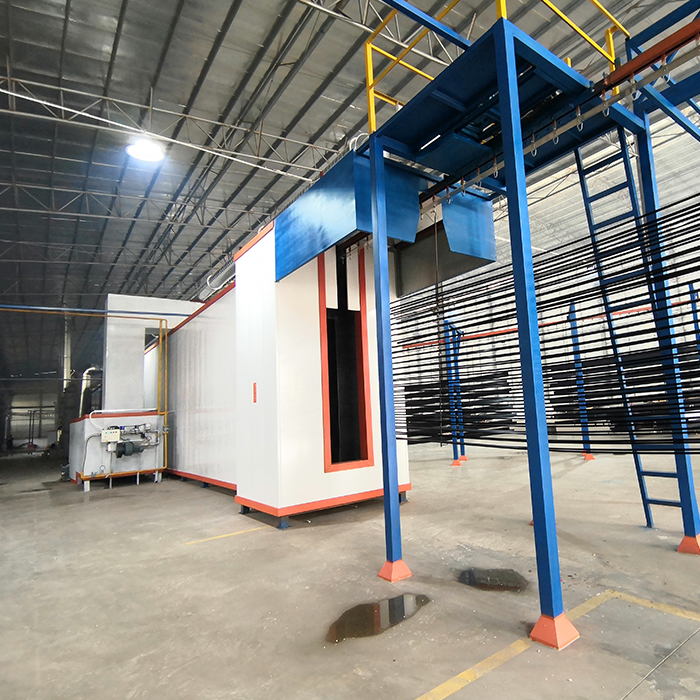

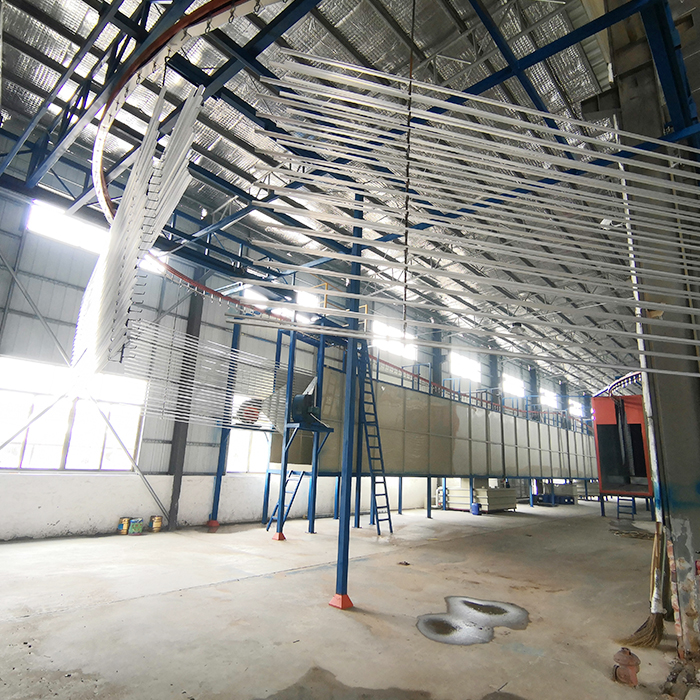

The installation process begins with selecting a level, well-ventilated workspace capable of supporting the unit’s load requirements. Components such as the conveyor system, spray chamber, curing oven, exhaust setup, and robotic spraying arms are assembled in sequence according to workflow logic. Electrical connections must adhere to explosion-proof standards, and all mechanical parts—including the spray guns, which require angle and distance calibration based on product shape—must be precisely aligned. A dedicated filtration system ensures compliance with VOC emission regulations by capturing airborne particles before releasing filtered air outdoors. Post-installation testing includes verifying spray uniformity, temperature consistency in the oven, and exhaust performance to guarantee safe, efficient operation.

Maintenance protocols are critical for long-term reliability. Daily tasks involve cleaning nozzles and spray guns using appropriate solvents to prevent clogging. Weekly checks include draining condensate from compressed air lines and inspecting filter elements. Monthly cleaning of the oven interior removes accumulated oil and dust, while quarterly replacement of exhaust filters maintains airflow integrity. Annual insulation tests on electrical systems and calibration of sensors ensure ongoing accuracy. All maintenance should be performed with power and gas sources disconnected, and operators must wear protective gear including respirators and safety clothing to comply with occupational health standards.

Common applications span industries requiring high-quality, corrosion-resistant finishes on metal substrates—from automotive body panels and architectural hardware to industrial shelving and consumer electronics casings. Whether used in standalone booths or integrated into larger assembly lines, this system offers scalable solutions tailored to both small workshops and large-scale manufacturers seeking sustainable, cost-effective coating alternatives to traditional wet painting methods.

Users report significant improvements in finish consistency, reduced material consumption, and faster throughput compared to manual or semi-automated systems. Operators appreciate the user-friendly touch interface and reliable automation, especially when handling repetitive tasks involving intricate parts. Maintenance staff highlight the modular design, which simplifies access to key components like motors, bearings, and heating elements, reducing downtime and extending service life.

Q: Can this system handle different types of coatings beyond powder? A: Yes, it supports UV-curable coatings and can be adapted for liquid paints with minor adjustments to the spray gun settings and airflow configuration. Q: Is the system suitable for outdoor use? A: No, it requires a controlled indoor environment due to sensitivity to weather conditions and the need for proper ventilation and safety measures. Q: How often should the exhaust filter be replaced? A: Every quarter under normal operating conditions, though frequency may increase depending on workload intensity and ambient dust levels. Q: What makes this line more eco-friendly than conventional options? A: Its closed-loop exhaust system minimizes volatile organic compound emissions, and its high transfer efficiency reduces paint waste by up to 40% compared to traditional spray techniques.
