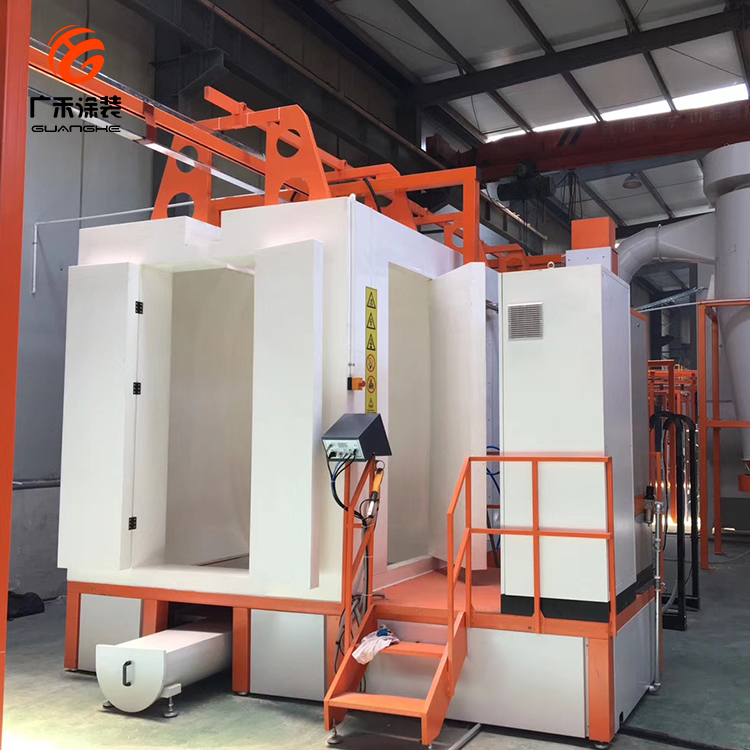

Automatic Powder Coating Machine Coating Booth

Automatic Powder Coating Booth for Industrial Surface Finishing – Efficient, Safe, and Eco-Friendly

This advanced automatic Powder Coating Machine is a cornerstone in modern industrial finishing processes, engineered to deliver consistent, high-quality surface treatment across diverse manufacturing sectors. Designed as an integrated component of a complete Powder Coating Line, it combines pretreatment, electrostatic spraying, and curing into a single automated workflow—ensuring uniform coverage, minimal material waste, and enhanced adhesion without the environmental drawbacks of traditional liquid paint systems. Ideal for metal fabrication, automotive components, white goods, and structural parts, this booth supports mass production while meeting stringent safety and performance standards.

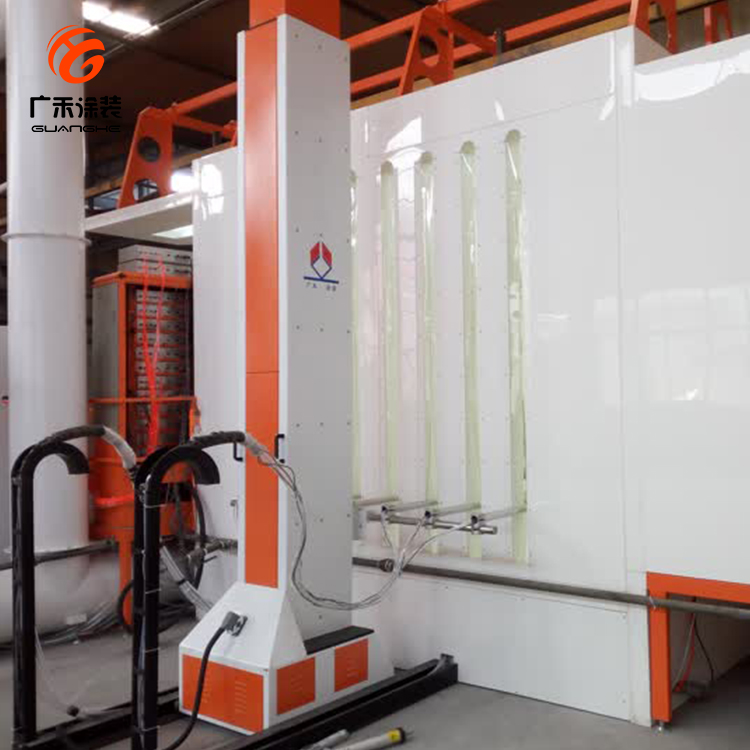

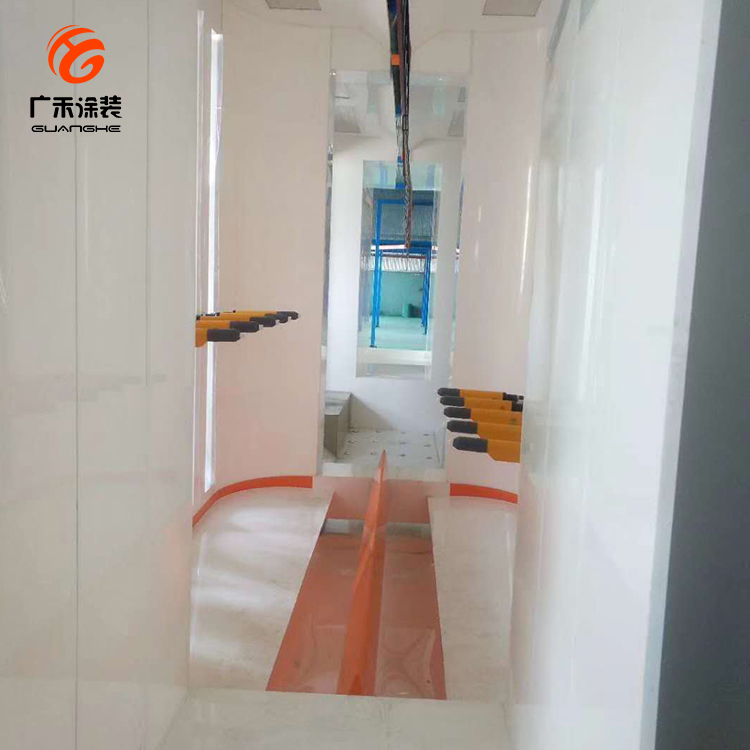

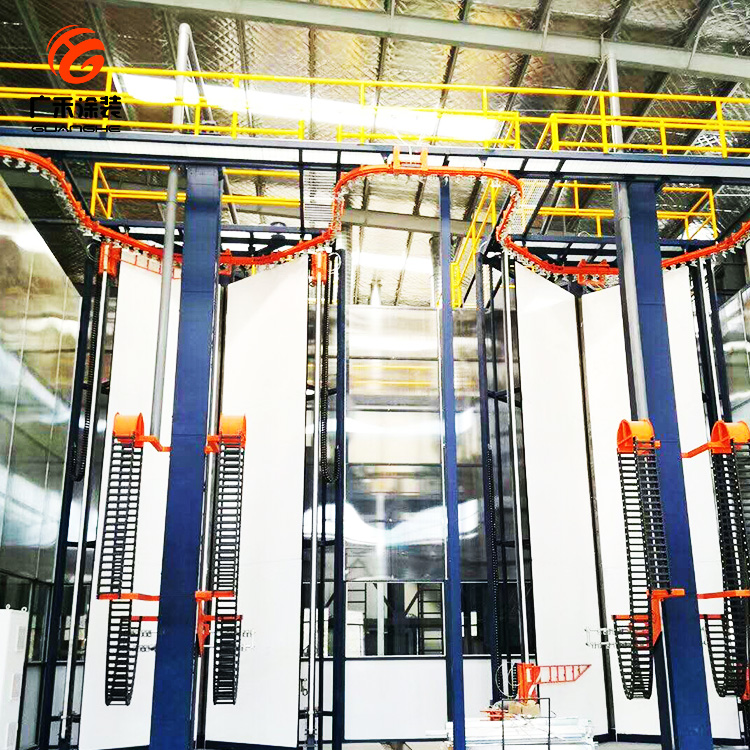

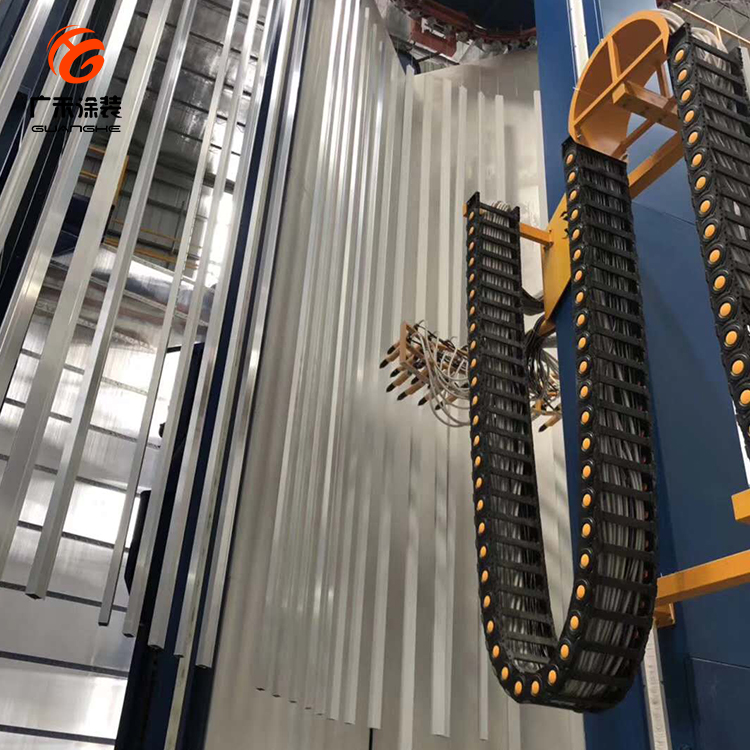

The system leverages electrostatic powder application technology paired with precision robotic spray arms, enabling optimized powder utilization and reduced overspray. Its intelligent control panel allows for customizable spraying programs tailored to part geometry, material type, and finish requirements. The modular design ensures easy integration with conveyor belts, overhead hoists, or automated handling systems, making it adaptable to both small-scale workshops and large-scale production lines.

Key Features:

• Integrated dust explosion protection valve compliant with international safety codes (e.g., ATEX, IECEx) for environments handling organic or metallic powders
• Low-pressure-drop mechanical isolation mechanism that requires no electrical activation—enhancing reliability and reducing maintenance needs
• High-compression strength construction for long-term durability under continuous industrial use
• Self-locking safety feature that prevents accidental reopening during operation
• Easy access for inspection, cleaning, and filter replacement—minimizing downtime

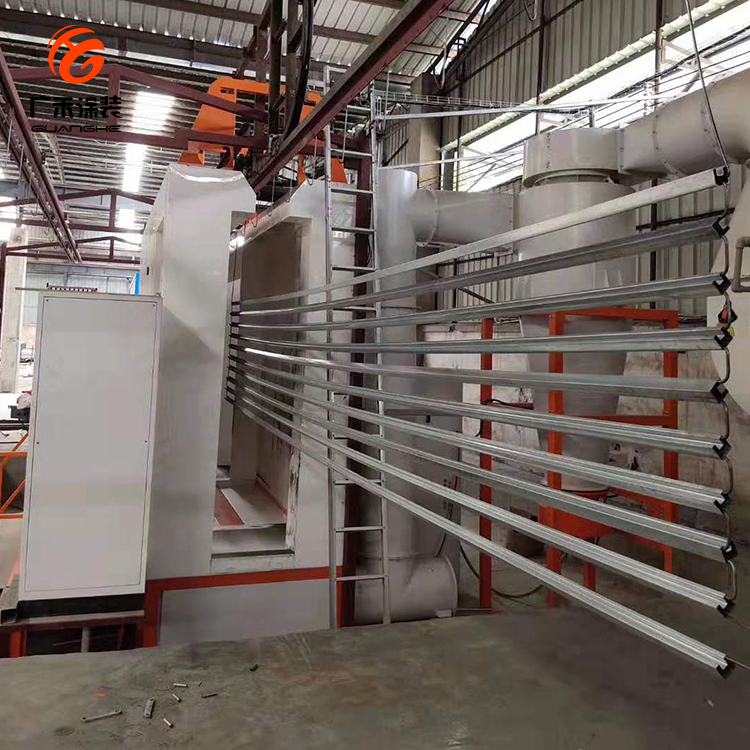

• Efficient powder recovery system including cyclone separators and bag filters for sustainable resource reuse
• Comprehensive grounding and explosion-proof certification for safe operation in hazardous areas

Installation begins with preparing a level, well-ventilated workspace equipped with adequate clearance for service access. Secure the base frame using provided anchor points, connect the conveying system (belt or chain), mount the spray gun assembly, and verify air pressure integrity through leak testing. Electrical connections must be performed by qualified personnel following local regulations. After initial setup, conduct no-load and load tests to confirm smooth operation, absence of vibration, and proper powder distribution. Calibration of spray parameters such as voltage, airflow, and gun-to-part distance ensures optimal results before full-scale production.

Maintenance routines are critical for sustained performance. Daily: vacuum residual powder from the chamber and wipe internal surfaces to prevent buildup. Weekly: inspect and clean or replace filtration elements using compressed air purge. Monthly: flush the recovery pipeline and cyclone separator to maintain efficient powder return. Quarterly: lubricate moving parts like chains and guide rails, check bolt tightness, and examine insulation materials on high-voltage components after power-off. Always disconnect power and wear protective gear when servicing live sections—never use water or solvents near energized components. Record key operational metrics such as air pressure, voltage levels, and spray uniformity post-maintenance to track equipment health over time.

This Powder Coating Booth excels in applications requiring durable, corrosion-resistant finishes across industries such as automotive manufacturing, appliance production, architectural metalwork, and heavy machinery. It’s particularly suited for facilities aiming to reduce VOC emissions, cut down on wasted materials, and improve workplace safety compared to conventional wet painting methods.

Users consistently report improved throughput, better finish consistency, and lower labor costs due to automation. Many appreciate the robust build quality and low failure rate, especially in demanding environments where dust accumulation and chemical exposure are common challenges. The inclusion of explosion-proof features has also been praised for enhancing compliance with global industrial safety norms.

Frequently Asked Questions:

How does this booth differ from manual Spray Booths? Unlike hand-held systems, this unit offers precise automation, consistent film thickness, and reduced operator fatigue—ideal for high-volume operations.

Is it suitable for fine or complex-shaped parts? Yes, thanks to programmable spray arm movement and adjustable electrostatic field settings, it can coat intricate geometries evenly.

What kind of powder can I use? Compatible with most thermosetting and thermoplastic powders commonly used in industrial coatings, including epoxy, polyester, and polyurethane formulations.

How often should I clean the powder recovery system? Monthly cleaning of the cyclone separator and pipeline prevents clogging and maintains efficiency; filter bags or cartridges should be replaced based on usage intensity and dust load.

Can it operate in hazardous locations? Yes, with certified flameproof valves and proper grounding, it meets international standards for Class I, Division 2 or Zone 21/22 environments involving combustible dusts.
