Powder Coating Oven Booth for Automotive Components

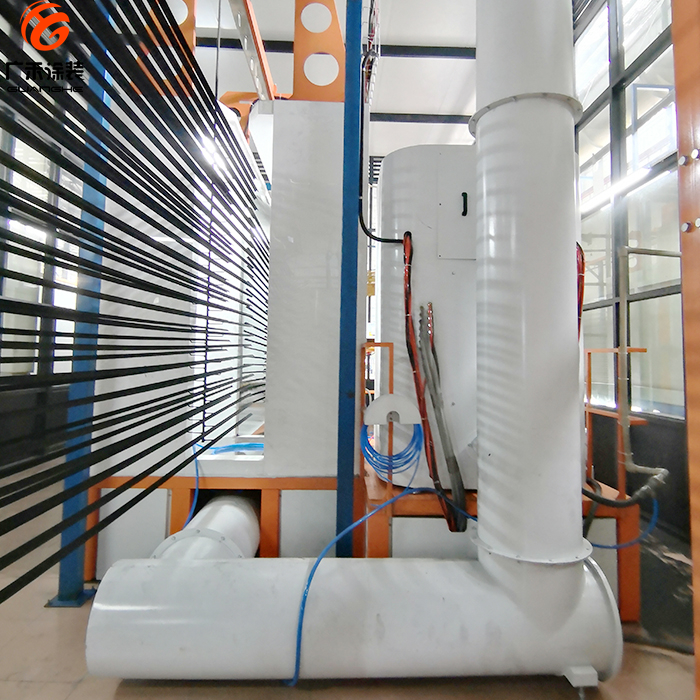

Automatic Vertical Profile Powder Coating Line – High-Efficiency Industrial Finishing Solution for Metal Profiles

This advanced Powder Coating System is engineered for seamless, high-volume application on metal profiles such as aluminum extrusions, window frames, door components, and pipe sections. Designed with automation at its core, this vertical powder coating line integrates intelligent spraying technology, electrostatic adhesion, and closed-loop powder recovery to deliver consistent, uniform finishes without coverage gaps or material waste. Engineered for modern manufacturing environments, it significantly boosts throughput by over 50% compared to manual methods while minimizing labor input—ideal for industries requiring precision, sustainability, and scalability.

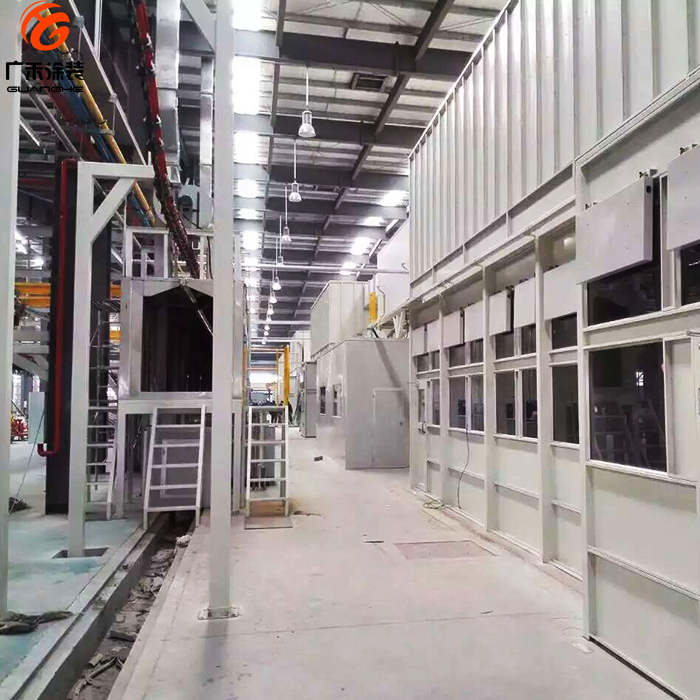

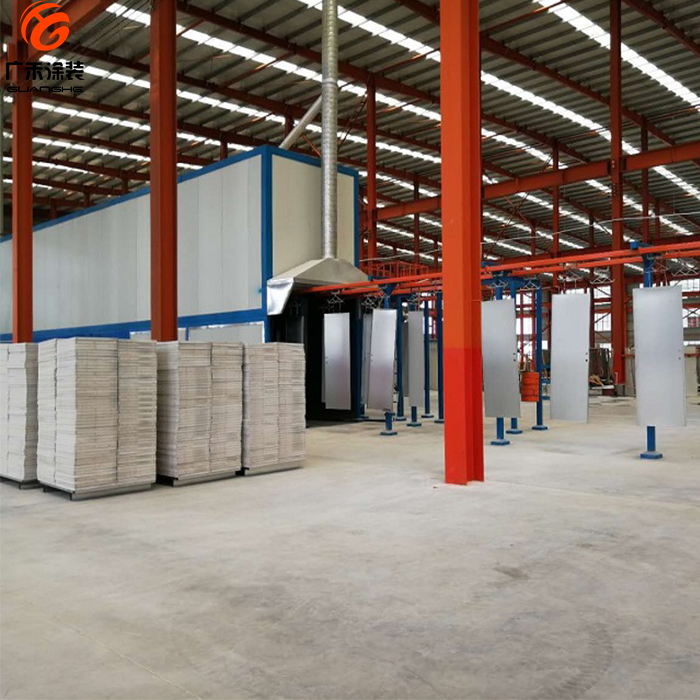

Key features include a robust vertical suspension conveyor system that ensures smooth movement of parts through each stage: pretreatment, powder application, curing, and cooling. The automated spray station utilizes either robotic arms or reciprocating systems for precise control, ensuring even coating thickness across complex geometries. Integrated recovery modules capture excess powder for reuse, reducing consumption by up to 30%, which not only cuts costs but also supports eco-friendly production standards. With customizable speed settings and flexible heating options—including electric, natural gas, or LPG—the system adapts effortlessly to varying production demands and facility conditions.

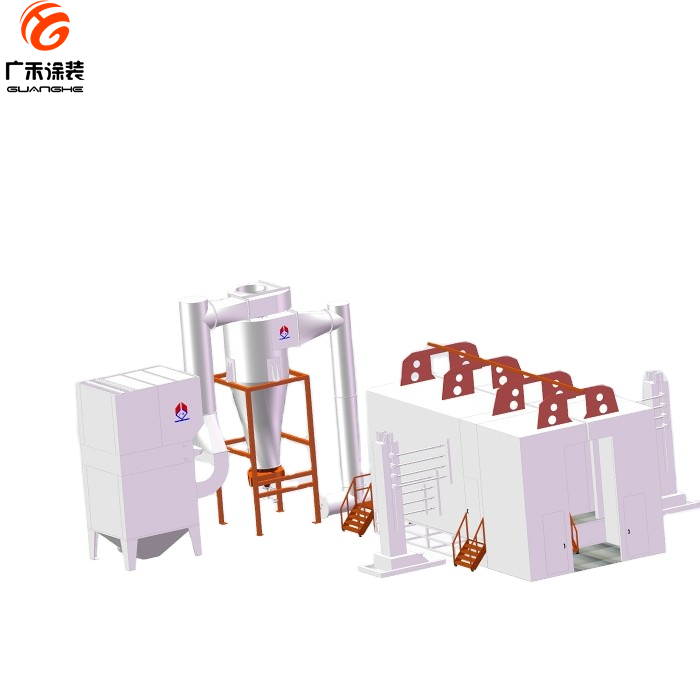

The entire setup is modular and scalable, allowing manufacturers to configure the line based on their specific output goals (e.g., tons per month, shifts per day). Each component—from stainless steel pretreatment tanks to durable conveyor chains—is built for longevity and low maintenance. Safety protocols are embedded into the electrical control system, including emergency stop mechanisms and real-time monitoring of critical parameters like temperature, airflow, and powder flow rate. Operators receive comprehensive training during commissioning to ensure safe and efficient operation from day one.

This industrial-grade solution serves diverse sectors such as construction, automotive manufacturing, furniture production, and heavy equipment fabrication. Whether coating architectural aluminum profiles for skyscrapers or finishing metal parts for machinery, the system delivers superior durability, aesthetic consistency, and compliance with international environmental regulations. Its ability to handle both standard and custom-sized workpieces makes it an ideal investment for factories aiming to upgrade from traditional dip or manual spray processes to a fully automated, closed-loop finishing line.

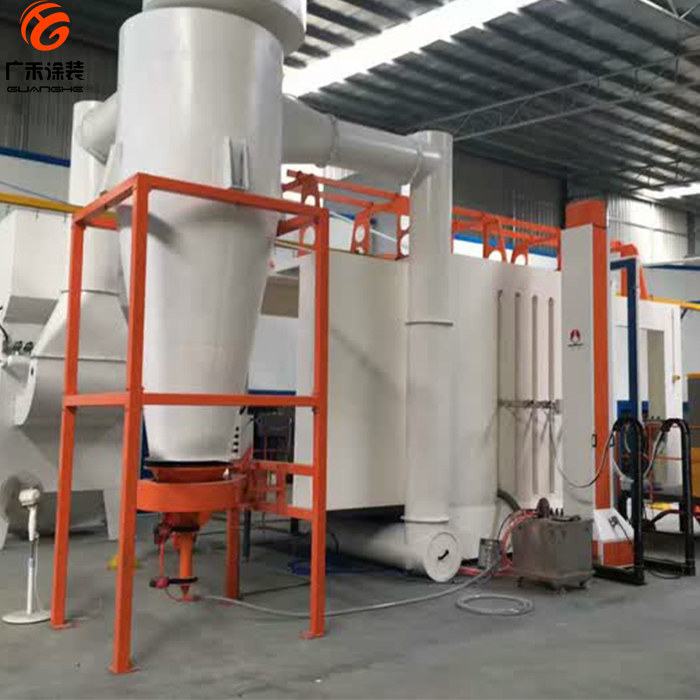

Users consistently report improved surface quality, reduced rework rates, and faster cycle times after implementing this vertical powder coating system. Many appreciate how the integrated dust collection and filtration units minimize airborne particulates, enhancing workplace safety and reducing cleaning efforts. Additionally, the structured maintenance schedule—ranging from daily nozzle checks to quarterly filter replacements—ensures long-term reliability and optimal performance. For companies seeking to future-proof their coating operations, this line offers unmatched efficiency, precision, and cost-effectiveness in global markets.

Frequently asked questions often revolve around installation requirements, such as floor load capacity, utility connections (gas, electricity), and space planning. While these factors must be addressed before deployment, the system’s modular design allows for phased implementation. Another common query involves compatibility with different materials—while primarily intended for metals like aluminum and steel, modifications can accommodate certain composite substrates. Overall, this solution represents a smart evolution in industrial finishing, combining automation, environmental responsibility, and operational excellence in a single integrated platform.
