Automatic Powder Coating Booth for Car Parts

Automatic Powder Coating Booth for Automotive Parts – Efficient, Precise, and Safe Surface Finishing Solution

This advanced automatic Powder Coating Booth is engineered specifically for the efficient surface treatment of metal components in the automotive industry. Designed as a fully enclosed system with integrated robotic automation, it delivers consistent, high-quality finishes by applying electrostatically charged dry powder evenly across complex geometries. Unlike traditional methods, this system minimizes waste, reduces environmental impact, and ensures superior adhesion and durability—making it ideal for manufacturers seeking precision, scalability, and compliance with global safety standards.

Key features include programmable robotic arms for uniform coverage, conveyor-based workflow integration, intelligent control systems that optimize spray parameters, and a closed-loop powder recovery mechanism to maximize material efficiency. The modular design supports customization based on part dimensions, production volume, and finish requirements—whether for small batches or continuous high-throughput operations.

The installation process demands careful planning: a level, well-ventilated workspace must be prepared to accommodate equipment weight and ensure safe operation. Assembly follows detailed manufacturer schematics, covering structural framing, powder spray gun mounting, conveyor chain setup, and dust collection units. Electrical connections require certified professionals to link to stable power sources and ground properly. During commissioning, critical adjustments such as spray angle calibration, powder flow rate optimization, and synchronization between belt speed and robotic motion are tested rigorously. Safety measures—including explosion-proof lighting, fire suppression systems, and comprehensive operator training—are mandatory before full-scale deployment.

Maintenance routines are structured around frequency-based tasks to maintain peak performance. Daily checks involve cleaning spray nozzles and removing accumulated powder from internal surfaces. Weekly inspections include draining condensate from compressed air dryers and verifying filter integrity. Monthly lubrication of conveyor bearings and guide rails prevents wear. Quarterly audits cover combustion chamber cleanliness (if equipped) and exhaust emission compliance. Annually, high-efficiency filters are replaced, sensors recalibrated, and all electrical terminals inspected for looseness. Strict adherence to shutdown procedures and use of personal protective equipment—including masks, gloves, and eye protection—is essential to prevent inhalation or skin contact with powder particles. All maintenance logs must be retained for traceability and regulatory audits.

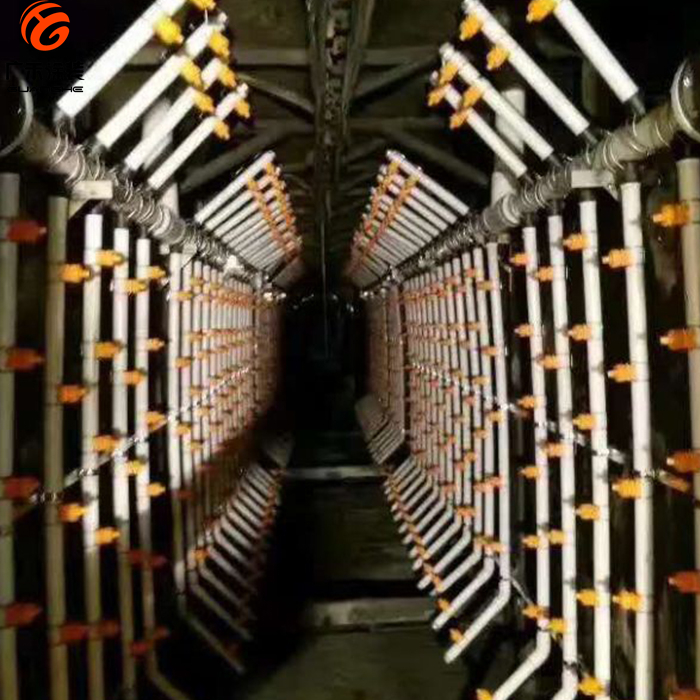

Designed for versatility, this system supports multiple pretreatment options such as dip tanks, spray tunnels, or immersion baths using stainless steel or chemical-resistant plastic materials. Spray types can be configured manually or automatically—with robotic arms offering superior accuracy over reciprocating systems for intricate parts. Heating methods range from electric to gas-powered (natural gas or LPG), allowing flexibility depending on energy availability and operational costs. Conveyance systems may be automated or semi-manual, tailored to production needs and facility layout.

Manufacturers worldwide rely on this technology to enhance product aesthetics, corrosion resistance, and longevity while meeting international quality benchmarks like ISO 9001 or IATF 16949. It’s particularly suited for components like engine brackets, suspension parts, wheels, and chassis elements where consistency and reliability matter most.

Users report significant improvements in finish uniformity, reduced rework rates, and faster cycle times compared to manual processes. Operators appreciate the intuitive interface and reduced physical strain, while maintenance teams value the systematic upkeep plan that extends equipment lifespan and minimizes downtime.

Frequently asked questions often revolve around setup complexity, compatibility with different metals (e.g., aluminum vs. steel), and how to integrate existing lines. Most installations are completed within 2–4 weeks after site preparation, and custom solutions are available for non-standard part sizes or unique production layouts. With proper training and routine care, these booths offer 10+ years of reliable service with minimal operational disruptions.
